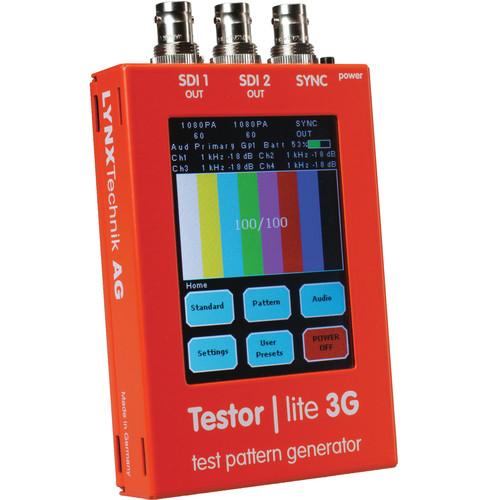

Product description The PTG 1802 Testor | lite 3G from Lynx Technik AG is a compact 3G-SDI video and audio test pattern generator for modern digital infrastructures. It's battery-operated for up to four hours of use, and it offers a simple workflow thanks to an intuitive user interface and large color touchscreen. The Testor | lite 3G provides two multi-format SDI outputs, a sync output, and multiple streaming modes. Featuring an embedded audio generator, the Testor | lite 3G offers two stereo pairs of independent audio and allows both SDI embedders to be configured independently. The generator also provides text, circle, and safe marker overlays to choose from. External power is supported via a USB connection. A USB cable is included. - 2 x Multi-Format SDI Outputs
-
- SDTV 270 Mb/s, HDTV 1.5 Gb/s, HDTV 3 Gb/s
- Multiple 3G Streaming Modes
-
- Two standard 3G streams (level A direct mapping)
- Two 1.5 Gb/s outputs, one per BNC connector (dual link)
- Two 1.5 Gb/s streams multiplexed into one 3G output (level B dual link)
- Embedded Audio Generator
-
- Four independent audio channels
- Each channel has adjustable frequency and amplitude
- 8 channels of audio embedded into both SDI outputs
- Both SDI embedders can be independently configured
- Analog Reference Sync Output
-
- SDTV bi-level, or HDTV tri-level sync
- Large Internal Pattern Library
-
- Static test patterns
- Dynamic (moving) test patterns
- 3D test patterns (left eye/right eye)
- Selectable Overlays
-
- Text overlay (16 characters on one line)
- Circle overlay
- Safe action or safe title markers
In the Box Lynx Technik AG PTG 1802 Testor | lite 3G-SDI Test Pattern Generator USB-DCP AC Power Supply with Plug Adapters USB Cable Limited 3-Year Warranty (Limited 6-Month Battery Warranty) Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG PTG 1802 Testor | lite 3G-SDI Test Pattern Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG P TG 1802 Specs | SDI Outputs | 2 x SDI on BNC (75 Ohm)
Each Output Is the Same Format and Frequency but Can Have Different Static Test Patterns (Dynamic Patterns Are on Both SDI Outputs)
SMPTE 424M, SMPTE 292M, SMPTE 259M | | Video Formats | SDTV 270 Mb/s: 525 (480i/59.94), 625 (576i/50)
HDTV 1.5 Gb/s: 1080i/60, 1080i/59.94, 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/24.98, 1080psf/25, 1080psf/24, 1080psf/23.98, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25, 720p/24, 720p/23.98
HDTV 3Gb/s: 1080p/60, 1080p/59.94, 1080p/50 | | 3G Modes | One 3G Stream on Both BNC Connectors
Direct Mapping Level A (SMPTE 425)
Two Individual 1.5 Gb/s Streams, One per BNC Connector / Dual Link (SMPTE 372)
Two Individual 1.5 Gb/s Streams Multiplexed into Single 3 Gb/s Stream / Dual Link Level B (SMPTE 425) | | Audio | 4 x Independent Audio Channels (2 Stereo Pairs), Each with Adjustable Level and Frequency
Preset Frequency Selections: 50/100/200/250/400/500/800 Hz, 1/2/4/8/16 kHz
Level Adjustments: 0 to -79 dBFS in 1 dB Steps
All 4 Channels Available to Both SDI Output Embedders, Which Can Embed 8 Channels into Any Two Groups (Selectable). Each SDI Embedder Can Be Configured Independently with Different Groups and Channel Assignments.
Note: When SMPTE 525 Dual Stream or Dual Link Mode Is Used, Audio Is Embedded into Both Streams | | Sync Output | 1 x Analog Sync Output, BNC Connector 75 Ohm
Reference Output Is the Same Standard as the Selected SDI Output
SDTV = Bi-Level Analog Sync Only (No Burst or Video Content)
HDTV = Tri-Level Analog Sync | | Patterns | Static Patterns: 100 Split Colorbars, 75 Split Colorbars, 100 Full Bars, 75 Full Bars, SMPTE 219 Colorbars, Full Field Red, Full Field Green, Full Field Blue, Full Field Black, Full field White, Pluge, Crosshatch, 5-Step Staircase, Valid Ramp, Limit Ramp, Multiburst, Frequency Sweep, Pathological EQ/PLL
Dynamic Patterns: EBU A/V Sync Pattern, Moving Boxes
3D Patterns: 3D Boxes (Left Eye / Right Eye), 3D Gray Boxes (Left Eye/Right Eye) | | Overlay | Text Overlay: Single Line, 16 Characters Max
Circle: 1 Pixel Circle Centered on Test Pattern
Markers: Safe Action or Safe Title Markers per SMPTE RP218-2002 | | Power | Internal Rechargeable Battery. Full Charge Provides Approx. 4 Hours of Continuous Use
External Power / Charge Is Provided via USB Port
Note: USB Port Is Also Used for Firmware Updates
When Connected to Standard USB 2.0 Port, the Testor | lite 3G Will Draw 500mA (Max) to Charge Battery. (If the Unit Is Powered while Connected to a USB 2.0 Port, Then It Will Use the Internal Battery and Does Not Charge). Charge Time Is Approx. 360 Minutes (from Empty) when Connected to Standard USB 2.0 Port (i.e. Computer) with Testor | lite 3G Switched Off.
If Connected to USB-DCP Power Supply (Included), the Unit Can Be Powered and Charged Simultaneously (1.5 A). Charge Times (from Empty): Approx. 100 Minutes with the Unit Switched Off, and Approx. 180 Minutes with the Unit Switched On. | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 90% Non-Condensing | | Safety | IEC 60950-1.2005 / EN 60950-1:2006 | | Dimensions | 5.1 x 3 x 0.9" / 13 x 7.7 x 2.3 cm (Including Connectors) | | Weight | 8.8 oz / 250 g | | | | Package Weight | 1.205 lb | | Box Dimensions (LxWxH) | 10.8 x 7.0 x 2.2" |
